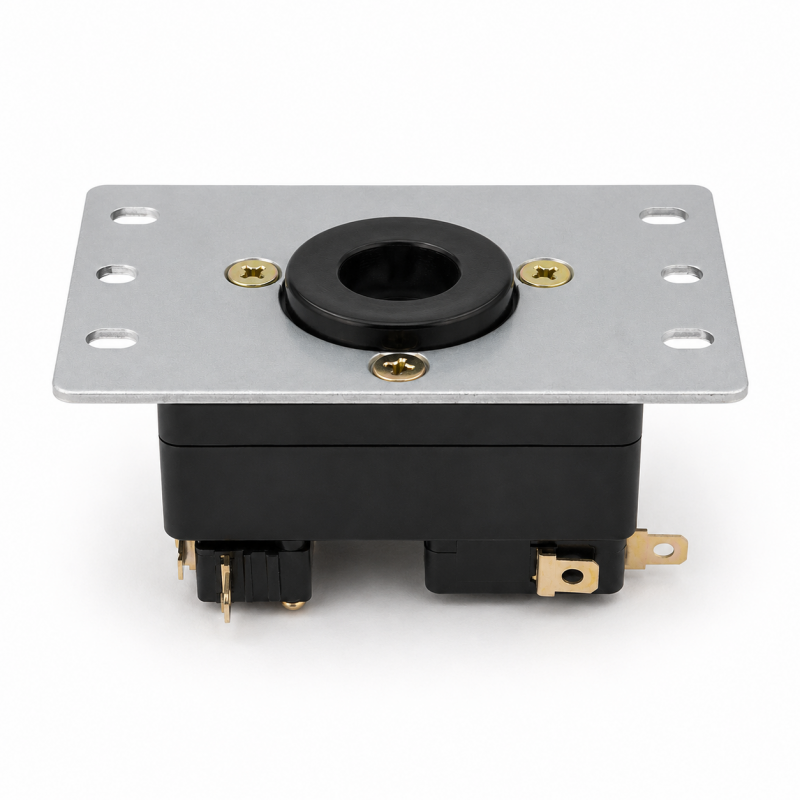

Crown CWL-307FJ-KMS-ST35 Arcade Joystick

Important: This joystick is supplied without shaft / lever or bat top. Compatible shafts are available separately. Below you can find a list of the different compatible options.

The Crown CWL-307FJ-KMS-ST35 joystick is a model developed based on feedback from users of the Crown 303 series joysticks. It provides a smooth and responsive feel similar to Japanese joysticks such as the Sanwa JLF / JLX, while using a silicone grommet for a fast return to the neutral position.

The combination of its actuator and microswitches provides smooth and highly responsive operation, a feature especially appreciated by players of Tekken and other fighting games.

The CWL-307FJ-KMS-ST35 model features a short, completely flat and collarless base, unlike Crown MJ joysticks. This design makes it easier to perform fast and precise movements and allows compact installation in a wide range of compatible arcade cabinets and arcade sticks.

The CWL-307FJ-KMS-ST35 uses an ST35 tension grommet with Shore A 35 hardness, providing balanced resistance and a fast return of the lever to the neutral position. Its medium tension and smooth feel make it an interesting option for players accustomed to joysticks such as the Sanwa JLF / JLX who want to try the distinctive feel of a Korean joystick.

One of the most notable features of the Crown CWL-307FJ-KMS-ST35 is its 16.5 mm actuator, designed to make fast and precise contact with the Gersung microswitches. This makes it easier to perform quick movements, which is especially important in fighting games and other arcade games that require precision and speed.

Samducksa Crown joysticks use a silicone rubber ring to allow the lever to return quickly to the center. This system is characteristic of Korean joysticks and is especially recommended for 3D fighting games such as Tekken, where fast, consistent and precise movements are required.

Compatible shafts

This base is supplied without shaft, allowing you to choose separately the shaft that best suits the configuration or aesthetics of your arcade joystick.

• Replacement Shaft for Crown CWL Series Joystick - Compatible with Crown joystick series 309, 307 and 303.
• Translucent Replacement Shaft for Crown CWL-DX Series - To use this DX shaft with this base, it is also necessary to install the Crown CWL-DX 309-DX Bobbin.

Note: The translucent CWL-DX shafts require the installation of the corresponding Crown CWL-DX bobbin in order to be used with this base.

CAUTION:

This joystick is NOT compatible with the Sanwa JLF mounting plate.

The Crown CWL-307FJ joystick uses four Gersung GSM-V1623A3 (4.8 mm) microswitches.

This version is supplied as a joystick base without shaft / lever or bat top.

The microswitches may arrive slightly bent due to packaging and transport.

The Faston terminals may show slight differences in color.

To install a compatible shaft, insert it firmly following the installation procedure corresponding to the selected shaft model.

Product code explanation

CWL = Bat-top lever

F = Very low collar

M = Medium collar

Helpme = Long collar

J = Japanese mounting plate

K = Korean mounting plate

KMS = Korean microswitch

ST25 / ST30 / ST35 = Different silicone rubber hardness / tension levels

Features

• Crown CWL-307FJ-KMS-ST35 arcade joystick base
• Supplied without shaft / lever or bat top
• Made in South Korea by Samducksa Crown
• 16.5 mm actuator
• Gersung GSM-V1623A3 4.8 mm microswitches
• Flat and collarless base
• Internal silicone rubber tension grommet
• ST35 tension - Shore A 35
• Medium tension and smooth feel
• Round restrictor plate
• FJ Japanese-style mounting plate
• Fast return to neutral position
• Smooth movement without defined corners
• Ideal for Tekken and other 3D fighting games
• Not compatible with Sanwa JLF mounting plate
• Compatible with Crown 309, 307 and 303 series shafts
• Compatible with Crown CWL-DX shafts using the corresponding Crown CWL-DX bobbin
• Allows the shaft to be chosen separately to customize the joystick
