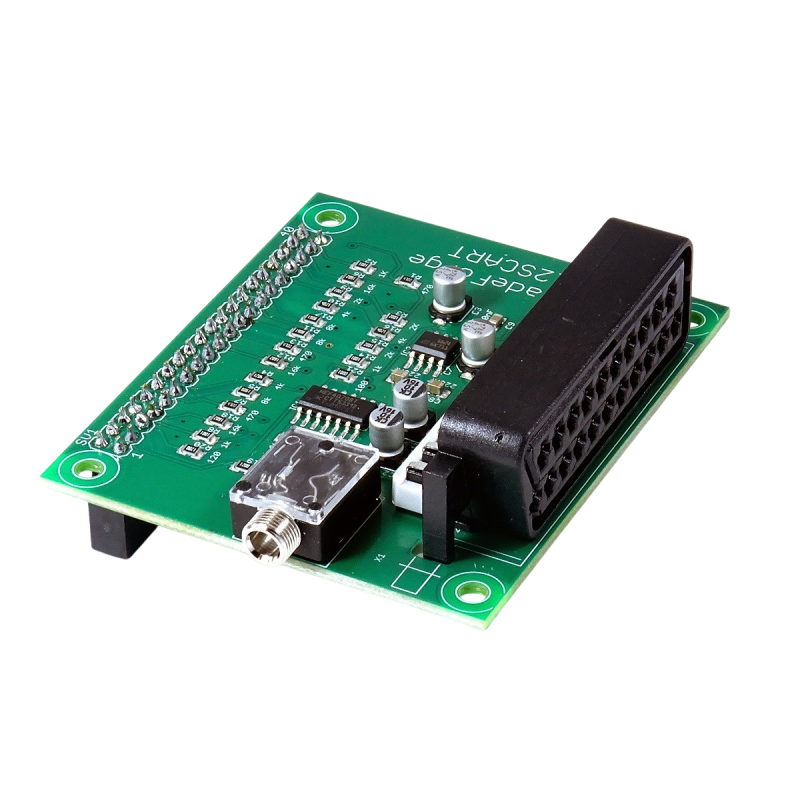

Arcadeforge Pi2SCART Video Converter Card 15Khz GPIO

Arcade Express is proud to be the official distributor of ArcadeForge.net products which is undoubtedly one of the most interesting Arcade related parts out there. The idea behing the PI2SCART is magnificent. Being able to enjoy all your favourite retro consoles and Arcade games on your CRT TV with Pixel Perfect resolutions thanks to the Pi2Scart and the Raspberry Pi Mini Computer.

For real retrogamers there is nothing like the experience of playing with the original hardware, which is why Arcade Express wanted to bring this interesting product and offer it to all of you, devoted retro gamers. The Pi2scart PCB simulates the video output of Retro gaming consoles with unprecedented accuracy.

Unfortunately connecting and playing with the Raspberry Pi on a TFT/LCD TV has several disadvantages. Some of them are the terrible scaling, where you'll see pixels the size of fists, bad colour, LAG in controls and image, and the wrong game clock speeds. This is just to give some examples.

With the Pi2scart board you will be able to connect your Raspberry Pi 3/3B+/4 to a TV/ Monitor CRT and forget about all problems. You will get a video image true to the original consoles and in some cases, even improving it. For example, the Nintendo NES and the Nintendo 64 that did not have RGB support by default and that thanks to the PI2SCART card you can now enjoy.

This card has direct support via SCART video input connector with the Raspberry Pi so that the video image outputs at 15Khz with PIXEL PERFECT resolutions and 4:3 aspect ratio. In addition, the board combines integrated Horizontal/Vertical SYNC with a LOGIC ICs chip that will deliver a super clean image.

Installing the Pi2Scart card is very simple. Simply connect it to the GPIO of your Raspberry Pi and download a Pi2Scart compatible Linux distribution that outputs video at 15Khz. In any case, at the end of this listing we will explain everything and provide a series of links to several compatible distributions.

The Pi2scart card has a stereo sound amplifier integrated in the PCB. To get sound simply connect the minijack audio cable (included in the package) to the Pi2scart minijack connector sound output and the Pi2scart to the speakers or sound card. Wherever you want the audio to come out from. The PI2SCART board does not require any additional power supply.

SOFTWARE DISTRIBUTIONS COMPATIBLE WITH PI2SCART

RETROPIE RGB COMPLETE ISO

OTHER RETROPIE DISTRIBUTIONS:

https://github.com/arcadeforge/RetroPieRGB

https://github.com/krahsdevil/Retropie-CRT-Edition

https://github.com/crtpi/CRTPi-RGB

PI2SCART INSTALLATION INSTRUCTIONS

Features

• Manufactured in Germany
• Easy installation, simply connect to the GPIO
• Compatible with Rasbperry Pi 3/3B+/4
• 15Khz video output with RGB quality
• PIXEL PERFECT resolution
• Stereo sound amplifier
• Clean video signal when combining SYNC with Logic ICS chip
• Support automatic 4:3 aspect ratio
• Auto support via SCART to RGB AV mode
