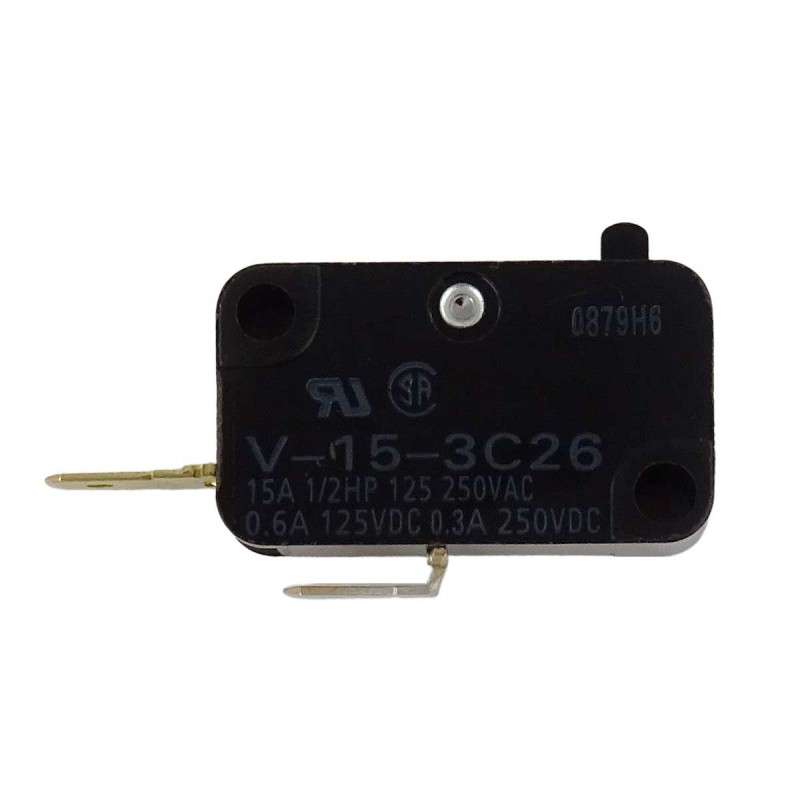

Sanwa / Omron V-15-3C26 4.8mm Microswitch
12 Items
VAT included
No reward points for this product.
Microswitch by Omron, model V-15-3C26 4.8mm. These microswitches have a fairly stiff actuation force: 1.96N (Newtons).
You may also be interested in
-
1 year warranty
-
Shipments in 24h / 48h
-
15 day return policy
Description - Sanwa / Omron V-15-3C26 4.8mm Microswitch
ATTENTION This microswitch is not suitable for the replacement of the microswitches that come by default soldered on the PCB electronic board of the Sanwa JLX and JLF joysticks, since, although being the same model, these are not prepared to be soldered.
Omron V-15-3C26 microswitch with medium-high actuation force.
This microswitch is suitable for both buttons and joysticks, and integrates 3 faston connection terminals (NO / NC / COM) 4.8mm wide.
Features
- Fast response
- Medium-high stiffness
- Compatible with Sanwa JLF / JLX joysticks
- Reliability and robustness
- High durability
- Screw mounting
Technical Specifications
- Conectores
- NO / NC / COM
- Configuración de contactos
- SPDT (Single Pole Double Throw)
- Conformidad RoHS
- Si
- Current
- 10A (AC) / 600mA (DC)
- Actuation force
- 1.96N (Newtons)
- Grado de Protección
- IP40
- Material
- Silver alloy
- Norma de seguridad
- UL, cUL, ENEC, CQC
- Weight
- 6gr
- Operating temperature
- -25°C / +85°C
- Terminals
- 4,8mm
- Electrical voltage
- 250V (AC) / 125V (DC)
- Tipo de activador
- Plunger
- Electrical life
- 300,000 cycles
- Mechanical life
- 50,000,000 cycles
