Sanwa / Omron Omron V-161-3A5 4.8mm Microswitch
30 Items
No reward points for this product.
VAT included

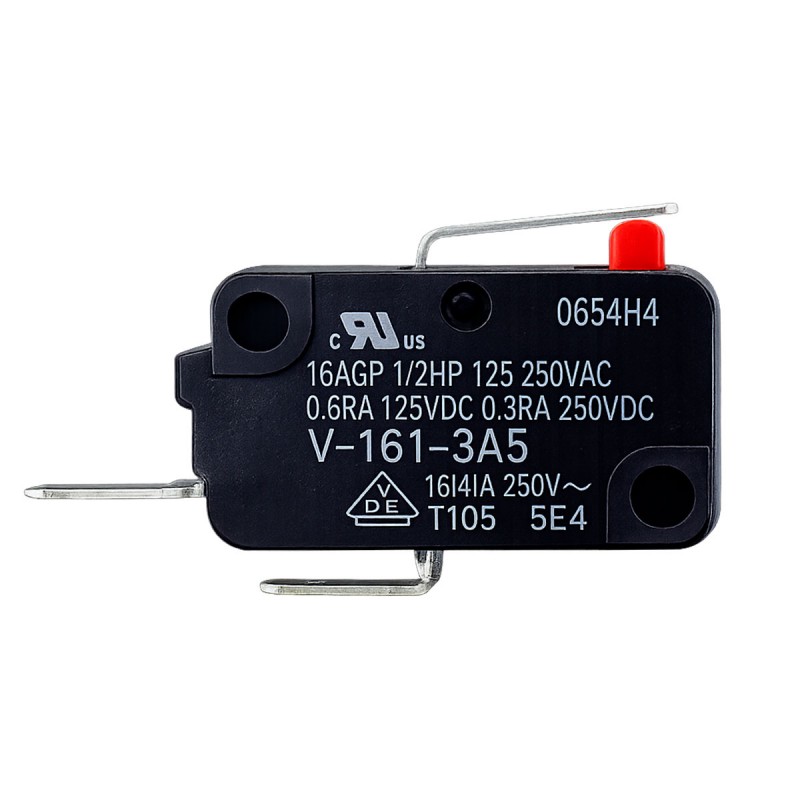

The Omron V-161-3A5 4.8mm Microswitch is a high quality snap action switch with 4.8mm faston terminals. It is the model factory installed in the Seimitsu LS-60 joystick.
You may also be interested in
-
1 year warranty
-
Shipments in 24h / 48h
-
15 day return policy
Description - Sanwa / Omron Omron V-161-3A5 4.8mm Microswitch
Arcade Express offers its customers the Omron V-161-3A5 4.8mm Microswitch, a professional component widely used in the Arcade environment.
This model features 3 faston terminals of 4.8mm (NO / NC / COM), allowing quick and easy installation using standard connectors, without the need for soldering. Thanks to its robust construction and Omron’s recognized quality, it provides precise activation and a long service life even in intensive use environments.
The V-161-3A5 is the microswitch factory-installed in the Seimitsu LS-60 joystick, ensuring balanced feel and excellent response in directional movements. It can also be used in arcade buttons or other joysticks compatible with 4.8mm terminals.
It is an ideal option for both replacements and customization or restoration projects for arcade machines.
Features
- Omron V-161-3A5 model
- 4.8mm faston terminals
- 3 connections: NO / NC / COM
- Fast and precise response
- High reliability and robustness
- Long durability
- Easy installation without soldering
- Original microswitch installed in Seimitsu LS-60
Technical Specifications
- Conectores
- NO / NC / COM
- Configuración de contactos
- SPDT (Single Pole Double Throw)
- Conformidad RoHS
- Si
- Current
- 16A (AC) / 0,6A (DC)
- Actuation force
- 1.96N (Newtons)
- Grado de Protección
- IP40
- Material
- Silver alloy
- Norma de seguridad
- UL, cUL, ENEC, CQC
- Weight
- 6gr
- Operating temperature
- -25°C / +85°C
- Terminals
- 4,8mm
- Electrical voltage
- 250V (AC) / 125V (DC)
- Tipo de activador
- Lever
- Electrical life
- 300,000 cycles
- Mechanical life
- 50,000,000 cycles
The Omron V-161-3A5 4.8mm Microswitch is a high quality snap action switch with 4.8mm faston terminals. It is the model factory installed in the Seimitsu LS-60 joystick.
