IL Arcade Jalisco Translucent WHITE Super Short Button PSL Industrias Lorenzo

€2.39
19 Items

No reward points for this product.

VAT included Financing available only for orders over 50 euros

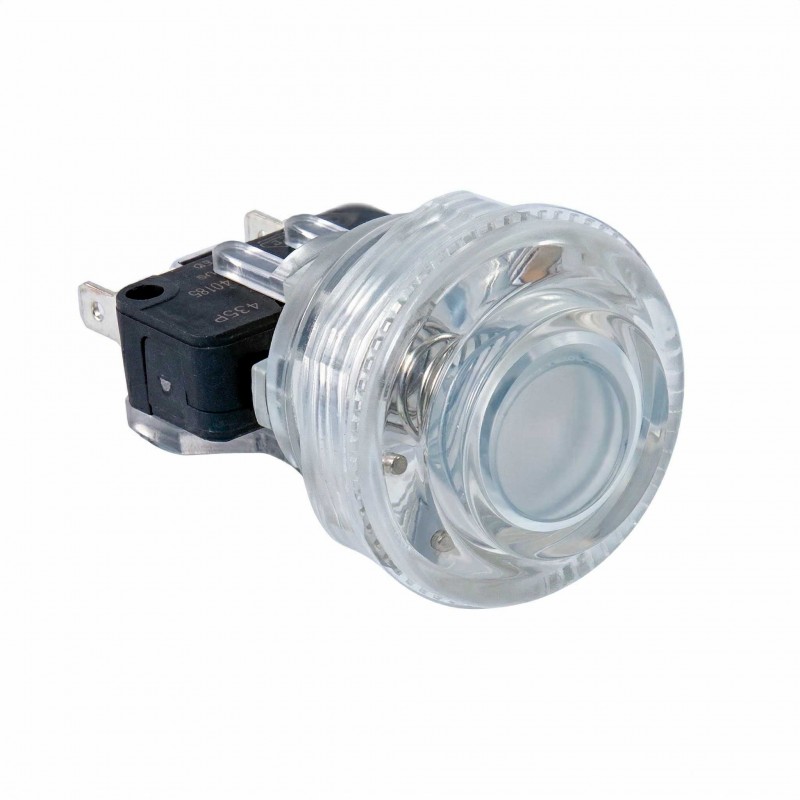

Translucent white Jalisco Super Short arcade pushbutton by Industrias Lorenzo, with Cherry D44X 4.8 mm microswitch. Designed for fightsticks and shallow metal panels. Made in Spain.

Quantity

Order it before 11:00 of today and receive it between Tue 21 April and Fri 24 April with UPS EXPRESS SAVER

You may also be interested in

  • 1 year warranty 1 year warranty
  • Shipments in 24h / 48h Shipments in 24h / 48h
  • 15 day return policy 15 day return policy

Description - IL Arcade Jalisco Translucent WHITE Super Short Button PSL Industrias Lorenzo

NOTE: These pushbuttons come fitted with Cherry D44X microswitches with 4.8 mm wide terminals. If you need microswitches with 6.3 mm wide terminals, please send a message after placing your order with the reference number.

The Jalisco Translucent Super Short Arcade Button is an exclusive version of the popular Jalisco pushbutton by Industrias Lorenzo, adapted for use in fightsticks, arcade sticks and shallow control panels. With its characteristic flat, translucent white surface, this button lets light through, delivering an elegant and visually striking finish.

The Jalisco is a hybrid pushbutton that combines the crown and bezel of the concave PSL button with the flat surface of the convex button, resulting in a wider actuation area and a faster response. Being a flat rather than recessed button, actuation occurs more immediately, making it ideal for fighting games and shoot 'em ups.

Includes the Cherry D44X microswitch (branded ZF since 2017) with a 4.8 mm faston terminal, delivering a smooth, precise actuation with a 75 g actuation force. Thanks to its reduced length of 18.28 mm, this pushbutton is specifically designed for installation in thin metal panels, unlike the standard model, which also fits wooden panels. Made in Spain with high-quality technical plastics.

Installation Information

To install the Jalisco Super Short Translucent Arcade Button, you'll need 4.8mm as that is the width of the button terminals. If you purchase one of the encoders we sell at Arcade Express, be sure to select the option with 4.8mm wide terminals depending of the microswitch you choose. You can also purchase extra 4.8mm wiring for the Zero Delay or the Xin Mo from the links below: Zero Delay / Xin Mo.

ATTENTION: As of January 1, 2017, all products sold through the Cherry Industrial Solutions are branded ZF. For more information click on the following
LINK.

Features

  • Translucent white flat pushbutton, Jalisco Super Short model
  • Made by Industrias Lorenzo (IL) in Spain
  • Designed for fightsticks and shallow metal panels
  • Includes Cherry D44X (ZF) microswitch, 4.8 mm / 75 g
  • Hybrid between concave PSL button and convex button
  • Larger actuation area than the standard concave button
  • Nut included
  • Mounting hole: 28–30 mm
  • Made with high-quality technical plastics
  • Quick and sturdy installation

Technical Specifications

Diameter
28mm
Length
18,28 mm
Weight
20gr
Terminals
4,8 mm
Button type
Americano
Panel type
metal panel
