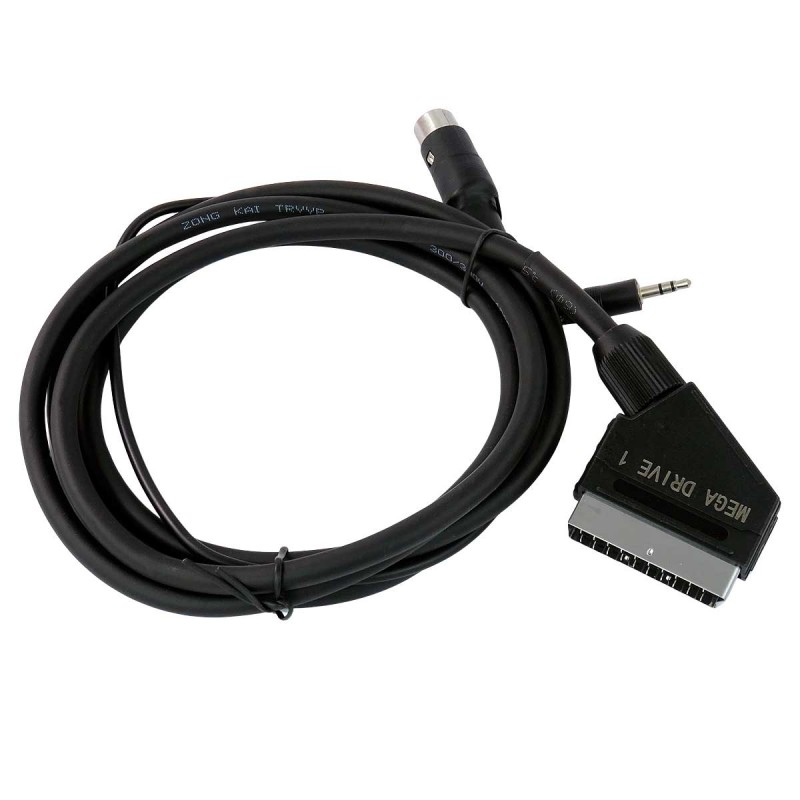

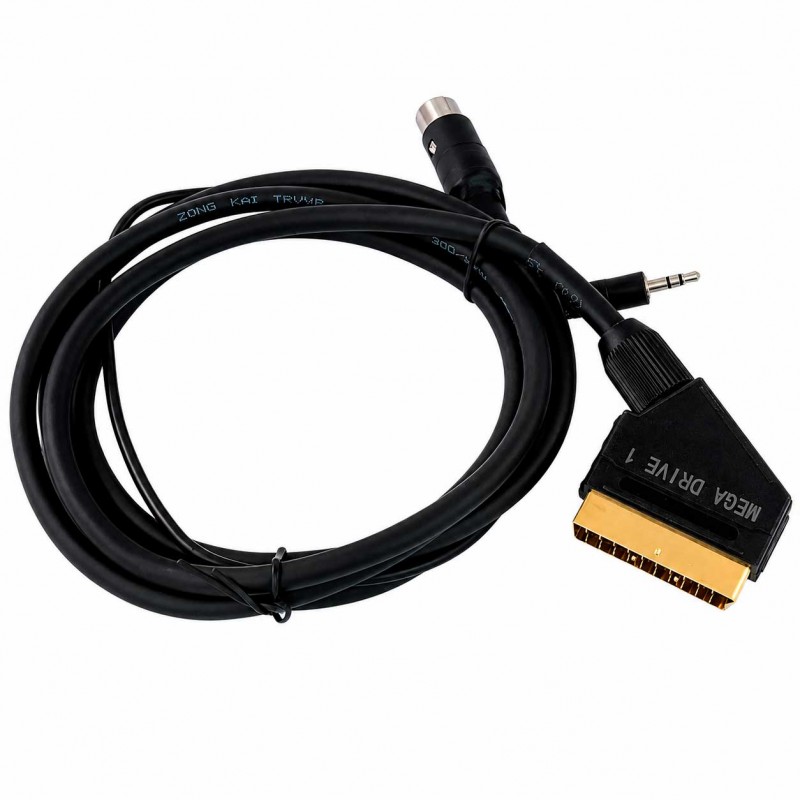

Mega Drive 1 / Genesis 1 Express Pro RGB SCART Stereo Audio Cable

The SEGA Mega Drive / Genesis Model 1 features a DIN-V connector on the rear from which a true RGB video signal can be extracted. With this RGB SCART cable you will get the most out of your console, achieving a sharp, vivid and interference-free image, far superior to the original video cable.

The Express Pro is the ultimate SCART cable for Mega Drive, entirely designed and manufactured by Arcade Express. It is built with a double-shielded cable that eliminates crosstalk between channels and external interference, guaranteeing maximum purity of image and sound. It incorporates AC coupling capacitors on the RGBS lines and the necessary resistors to achieve the standard 700mVpp signal level.

The cable supplies a CSYNC (composite sync) signal, correctly attenuated using a 470 ohm resistor on the sync line for 75 ohm operation. This guarantees the best possible picture and can reduce the vertical stripe effect (jail bars) present on some units.

Stereo audio is taken from the 3.5mm headphone jack located on the front of the console. An ideal cable to connect your Mega Drive to a CRT TV with SCART input, or to use it with any modern RGB-compatible upscaling solution. Fully plug and play: no tuning or additional setup required.

This cable is not compatible with the Master System or the Mega Drive Model 2.

Compatibility

• SCART enabled televisions
• SCART to HDMI converters with RGB support
• SCART to component video converters
• XRGB-mini Framemeister (via EuroSCART to mini adapter)
• OSSC (Open Source Scan Converter)
• RetroTink 2X SCART, RT5X and RT4K

Features

• Compatible with SEGA Mega Drive 1 / Genesis 1
• 8-pin V-DIN connector (V-shaped)
• No tuning required, plug and play
• True RGB video signal with CSYNC
• Stereo audio via 3.5mm jack (front headphone socket of the console)
• Built with double-shielded cable
• AC coupling capacitors on the RGBS lines
• 470 ohm resistor on the sync line for correct 75 ohm attenuation
• Fully wired and grounded SCART connector via integrated PCB
• Can reduce the jail bars effect
• Not compatible with Master System or Mega Drive Model 2
