Arcade Express Speaker 30W 8 Ohm 4 Inch Bartop / Arcade Machine

Without a doubt, one of the most important aspects to consider when building an Arcade Machine / Bartop is the music. Those magnificent 8 bit and 16 bit melodies from our favourite games need to be heard at full volume: Street Fighter II, Castlevania, Batman The Game, Super Mario Bros, 1942, Out-Run and many other games whose melodies we will never forget.

At Arcade Express we believe the most effective way to get great sound in our machines is by fitting a pair of individual speakers together with a separate audio amplifier. This gives you much more freedom when it comes to mounting than buying a standard speaker system, which you'll most likely have to strip out of its original housing, dealing with the wiring and complicating the installation process. This speaker is sold individually, so if you need a stereo setup you will need to purchase two.

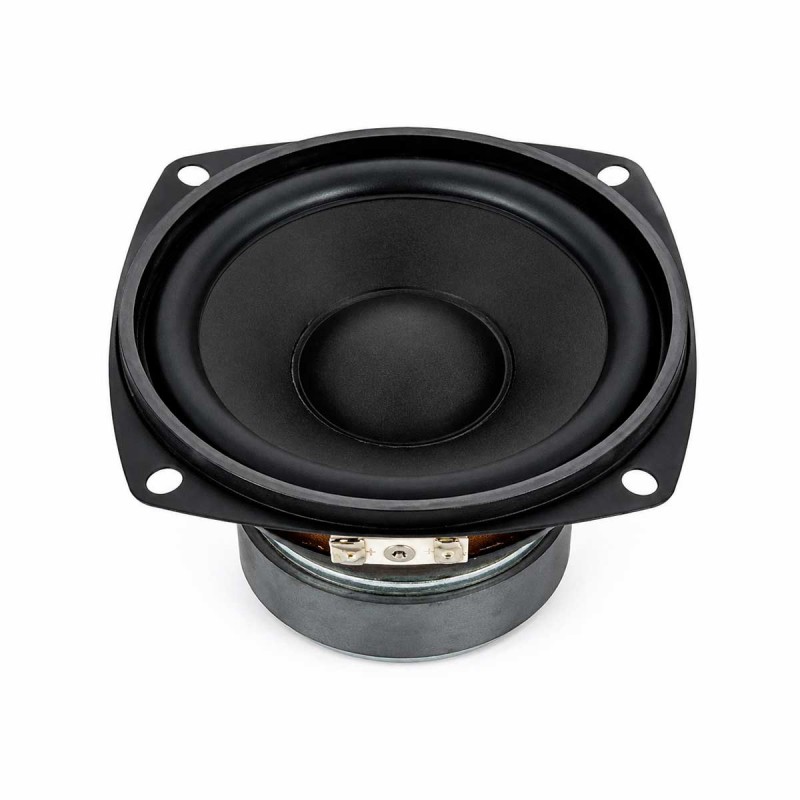

This time we bring you a 4 inch speaker (around 102mm in diameter), manufactured by Arcade Express for the Arcade Machine and Pinball world.

This is a speaker with excellent sound quality, with a power rating of 30 watts and 8 ohms, reaching a maximum of 35 watts. More than enough power to enjoy the music and sound effects of your Arcade Machine or Pinball at full blast. It also features a high frequency response of between 220 - 2000HZ SPL OUTPUT -10Db.

This speaker has 2 faston connectors, 4.8mm and 2.8mm, which can be soldered directly to audio cables, although we recommend buying the ones we sell, as they are of very good quality and already supplied with crimped and soldered connectors. You can find the cables at this LINK. If you'd also like to fit a grille for this speaker, we recommend the 95mm or 123mm diameter ones, also available through the following links: 95mm / 123mm.

Features

• Arcade Express brand
• High quality speaker
• Sold individually
• Faston connectors for easy installation
• Ideal for your Arcade Machine / Bartop / Pinball project
• Power 30W 8 Ohms
• Resonance frequency 140 ± 20% Hz
• Frequency response 220 - 20000HZ SPL OUTPUT -10DB
• Rated input power 30 W sinusoidal programme signal
• Max. input power 35 W
• Connections 4.8 x 0.5 MM (+) 2.8 x 0.5 MM (-)
• Compatible with the audio amplifiers we sell at Arcade Express
