Suzo Happ 3.3 Inch 10W 8 Ohm Speaker for Bartop / Arcade Machine

Few things shape the experience of an Arcade Machine / Bartop as much as the sound. The 8 bit and 16 bit melodies of our favourite games deserve proper volume: Street Fighter II, Castlevania, Batman The Game, Super Mario Bros, 1942, Out Run and so many others whose music has stayed with us for good.

At Arcade Express we believe the most effective way to get good sound is to fit individual speakers alongside a separate audio amplifier. It gives you far more freedom than a standard speaker system, which almost always ends up stripped out of its housing, with spliced wires and a far more awkward installation than it needs to be. This speaker is sold individually, so for a stereo setup you will need two.

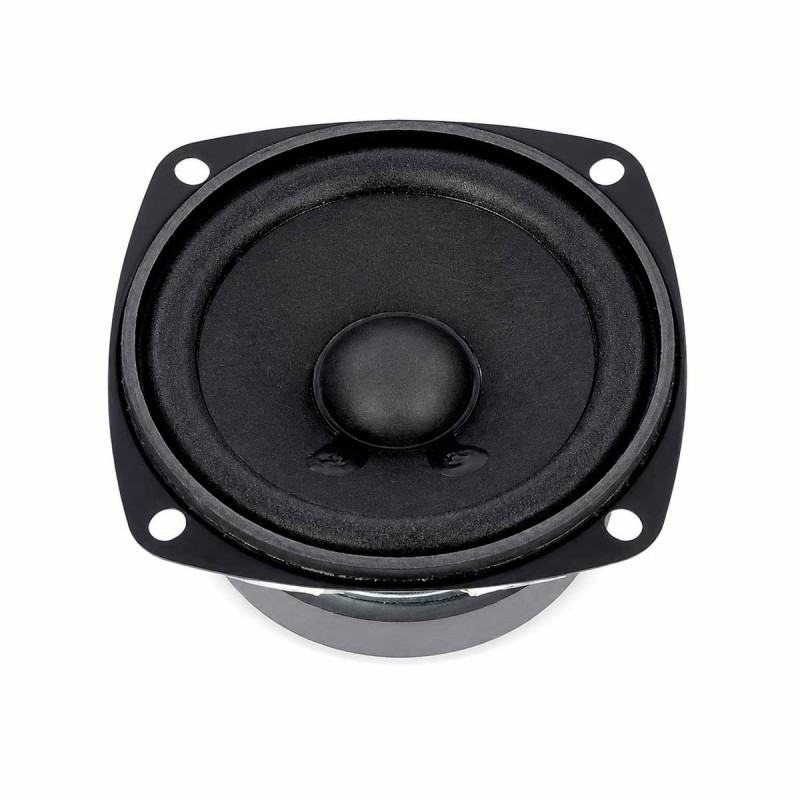

This is a 3.3 inch speaker by Suzo Happ, one of the leading manufacturers of components for the Arcade Machine and Pinball world.

It delivers 10 watts of rated power at 8 ohms and handles up to 15 watts maximum. More than enough for the music and sound effects of your Arcade Machine or Pinball to come through clearly and at a good volume. Frequency response of 220 - 2000 Hz (SPL output -10 dB), sound pressure level of 88 ± 2 dB at 1 W / 1 m and maximum distortion of 5% at rated power. Ferrite magnet, paper cone and dust cap, iron frame with black paint finish.

The model has passed a 24-hour continuous load test at 10 W with pink noise as well as heat and humidity tests (70 °C, and 40 °C at 90-95% relative humidity, 24 hours each), keeping its specifications afterwards. It also shows no buzzing or rattling with an 8 V sine wave signal between 60 and 1500 Hz. Operating temperature range of -25 to 70 °C.

It features two faston terminals of different sizes: 4.8 mm for the positive (+) and 2.8 mm for the negative (-), which makes polarity easy to identify when wiring it up. You can solder the audio cables directly, although we recommend ours, which are of very good quality and come with the connectors already crimped and soldered. You can find them at this LINK. If you'd like to fit a grille for this speaker, we recommend the 95mm diameter ones, available through the following link: 95mm

Features

• Suzo Happ brand
• High quality 3.3 inch speaker
• Sold individually
• Faston terminals for easy installation
• Ideal for your Arcade Machine / Bartop / Pinball project
• Power 10 W 8 ohms
• Voice coil impedance 8 Ω ± 15% (400 Hz, 1.0 V)
• Resonant frequency 140 Hz ± 20%
• Frequency response 220 - 2000 Hz (SPL output -10 dB)
• Sound pressure level 88 ± 2 dB (1 W / 1 m)
• Rated input power 10 W (sine wave programme signal)
• Max. input power 15 W
• Max. distortion 5% at rated power
• Temperature range -25 to 70 °C
• Ferrite magnet φ 60 x φ 32 x 10 mm
• Voice coil inner diameter φ 14 mm (min.)
• 3 mm top plate
• Paper cone and dust cap
• Iron frame with black paint finish
• Connections 4.8 x 0.5 mm (+) and 2.8 x 0.5 mm (-)
• Quality inspection level II, AQL 0.65 (MA) / 2.5 (MI)
• Compatible with the audio amplifiers we sell at Arcade Express
