IL Arcade Jalisco Button PSL Industrias Lorenzo

€1.82

No reward points for this product.

VAT included

Arcade Express presents a new IL Arcade Button model. This new model is called "Boton Jalisco". A high quality flat / convex type button with a larger touch area that gives the button a higher speed response when pressed.

Colour
  • Black
  • White
  • Red
  • Orange
  • Blue
  • Green
  • Yellow
  • Pink
  • Light Green
  • Violet
  • Dark Grey
  • Light Grey
Quantity

Order it before 11:00 on Monday and receive it between Tue 25 June and Thu 27 June with UPS EXPRESS SAVER

You may also be interested in

  • 1 year warranty 1 year warranty
  • Shipments in 24h / 48h Shipments in 24h / 48h
  • 15 day return policy 15 day return policy

Reviews by Revi

Description - IL Arcade Jalisco Button PSL Industrias Lorenzo

Please notice: These pushbuttons are mounted with Cherry D44X microswitches of 4.8mm width. If you need microswitches with a 6.3mm width, please leave a message with the reference number after your purchase.

Arcadexpress presents an item completely exclusive to our store, the "Jalisco" IL Arcade Button, also called the Mixed button. This button is a twist of the PSL concave button, IL (Industrias Lorenzo) best selling button. The Jalisco button is a button that combines the best of the concave button and the best of the convex button. This button was requested and then ordered by several of our Mexican customers, hence the name of the button. This button was first sold became known in the distant lands of Guadalajara, (Jalisco) where it was sold for the first time.

The Jalisco button has the crown of the concave button and the plunger of the convex button. It is therefore a flat button with a larger pressing area than the concave button. In addition to having more pressing area, being a flat button, the button actuation is quicker. This is a very fast button perfect for fighting games and Shoot 'em ups. Thanks also to the Cherry / Zippy micro, the button is even faster and smoother in its action. The Jalisco pushbutton is an American type button of the highest quality with some characteristics of the Japanese buttons type Sanwa and Seimitsu.

With an excellent finish and manufactured with high quality technical PVCs, the PSL Jalisco is a button that can be mounted in all types of Arcade, Bartops, Pinball and Vending MachinesIL Jalisco's arcade pushbuttons are super easy to install. Just drill a 28-30mm hole in your Arcade CPO, insert the button, screw it and lastly, attach the microswitch to its base.

This push-button is 31.2mm long and can be installed on both wood and metal panels without any problem.

Cherry D44X microswitches have a soft feel and touch. With an operating force of 75gr, this microswitch makes the button feel super soft when pressed. The Cherry D44X Microswitch come with 4.8mm terminals. This is without doubt one of the highest quality microswitches on the market.

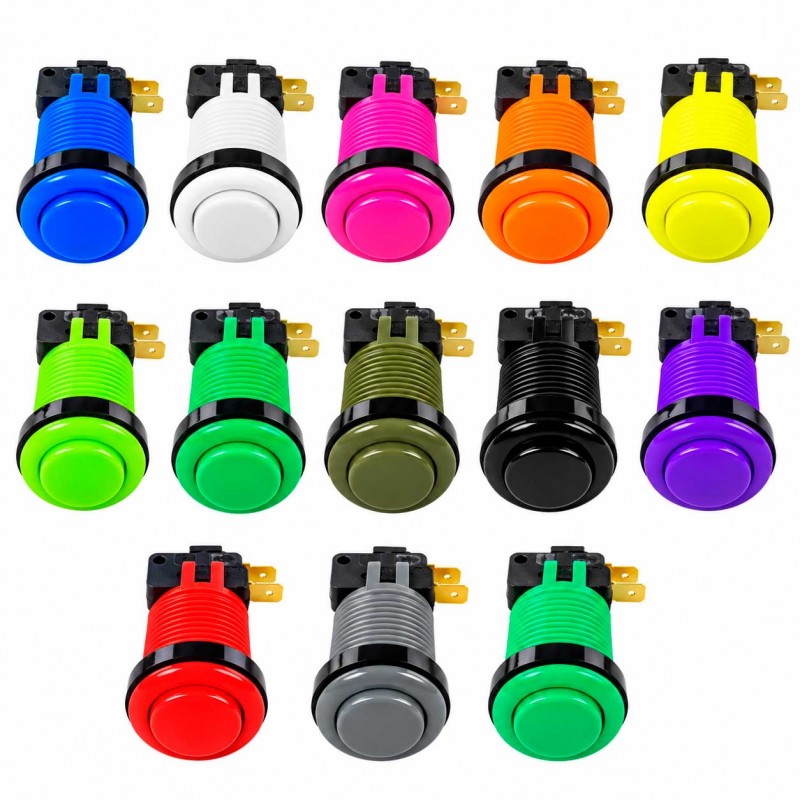

Another great features of ILs PSL Jaslico pushbuttons is that they are available in a wide range of different colours. You can choose from the following colours: white, blue, yellow, green, light green, orange, pink, purple, black, red, dark grey, light grey.

Mounting Information

To install the IL PSL Jaslico Arcade button, you'll need 4.8mm wiring as that is the width of the button terminals. If you purchase one of the encoders we sell at Arcade Express, be sure to select the option with 4.8mm  wide terminals depending of the microswitch you choose. You can also purchase extra 4.8mm wiring for the Zero Delay or the Xin Mo from the links below: Zero Delay / Xin Mo.

Enjoy your favourite arcade games with these exceptional pushbuttons made in Spain!

ATTENTION: As of January 1, 2017, all products sold through the Cherry Industrial Solutions are branded ZF. For more information click on the following LINK.

Features

  • IL Jalisco Push Button
  • High Quality Microswitch Cherry
  • Nut Thread included
  • 28mm diameter
  • Suitable for wood and metal panels
  • Wide range of colours
  • Made of high-quality PVC
  • Robust and Sturdy

Technical Specifications

Diameter
28mm
Length
57.10mm
Microswitch
4.8mm
Weight
30gr
Button type
American
Panel type
Metal / Wood
