51 x 51mm Square Flat Illuminated LED Button

€2.89
15 Items

No reward points for this product.

VAT included Financing available only for orders over 50 euros

Large square button with integrated LED lighting, ideal for arcade projects, gaming machines, custom control panels, and “Start”, “Credit” or “Player” buttons.

Colour
  • White
  • Red
  • Blue
  • Green
  • Yellow
Quantity

Order it before 11:00 on Tuesday and receive it between Wed 15 October and Thu 16 October with NACEX

You may also be interested in

  • 1 year warranty 1 year warranty
  • Shipments in 24h / 48h Shipments in 24h / 48h
  • 15 day return policy 15 day return policy

Reviews by Revi

Description - 51 x 51mm Square Flat Illuminated LED Button

The Square Illuminated LED Push Button 51 x 51 mm combines style, visibility, and reliability in a single component. Made from high-quality materials, it features a translucent lens that evenly distributes the LED light, creating a clean and professional visual effect.

Thanks to its included high-sensitivity microswitch, it guarantees an immediate and precise response with a lifespan exceeding 500,000 activations. Its modular design allows easy replacement of both the LED and the microswitch, extending the overall durability of the button.

Perfect for use in arcade machines, pinball machines, MAME control panels, bartops, or DIY projects, this button allows quick installation through a screw and rear nut system, ensuring a firm fit on panels up to 4 mm thick.

Available in multiple LED colors (red, blue, green, yellow, white), it supports a power supply of 5V / 12V DC and can be easily integrated with boards, superguns, or standard JAMMA systems.

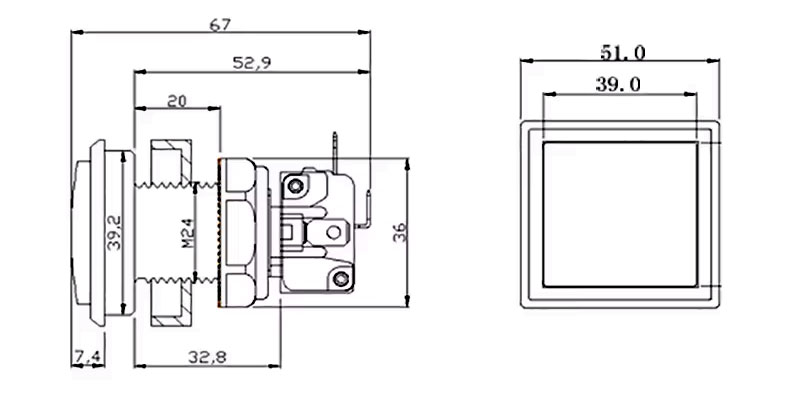

Features

  • Button dimensions: 51 x 51 mm
  • Mounting hole diameter: 24 mm
  • Connection type: Faston 2.8 mm (standard microswitch)
  • Integrated LED lighting (5V / 12V DC)

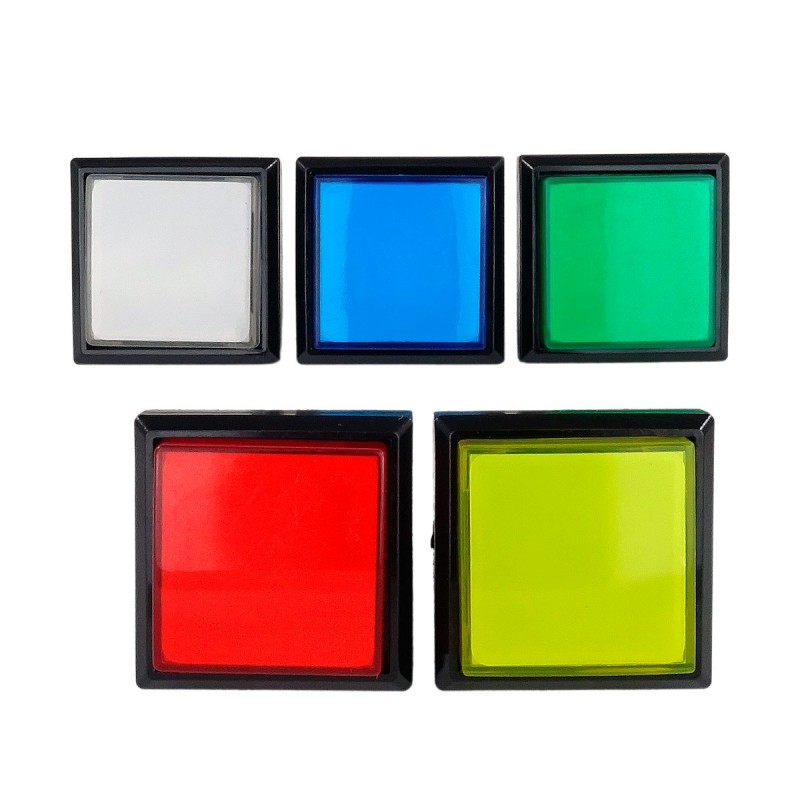

  • Available colors: red, blue, green, yellow, white
  • High-diffusion translucent lens
  • Microswitch included (removable and replaceable)
  • Lifespan over 500,000 presses
  • Mounted with screw thread and rear nut

Technical Specifications

Color
White / Green / Yellow / Red / Blue
Diameter
44mm
Microswitch
4.8mm / LED (6.3mm)
Weight
50gr
Button type
LED
Panel type
Metal / Wood
Voltage
5V / 12V
