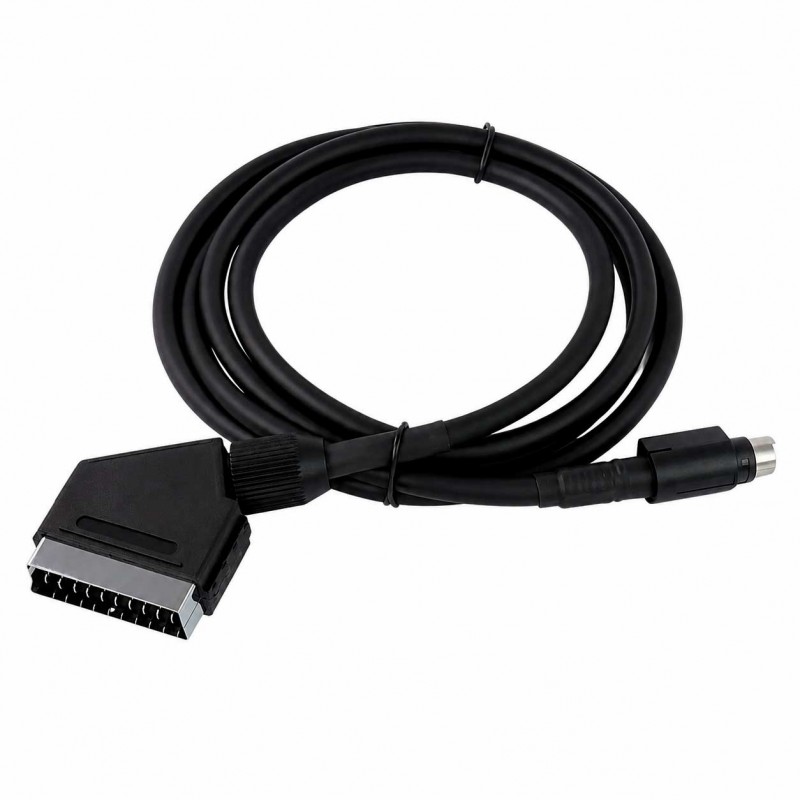

Supergun MVS CMVS Neo Geo Express Pro RGB SCART Cable

This Express Pro RGB SCART cable has been designed and manufactured by Arcade Express to connect your MVS CMVS Neo Geo Pro Supergun with Original SNK Board / MVS CMVS Neo Geo Supergun with Original SNK Board to any TV or converter with a SCART input, making the most of the Mega Drive 2-type video output (9-pin Mini DIN) fitted on these Superguns. The result is a sharp, bright, interference-free RGB picture with stereo sound.

Since it uses the same type of output, this cable is equally compatible with the SEGA Mega Drive 2 and the rest of the family of consoles that share this connector, making it just as useful if you own several systems and want a single high-quality cable.

It is built with double-shielded cable that eliminates crosstalk between channels and external interference, and it incorporates AC coupling capacitors on the RGBS lines along with the resistors needed to reach the standard 700mVpp signal level. The SCART connector is fully wired and grounded via a PCB integrated into the euroconnector itself.

The cable supplies a CSYNC (composite sync) signal, correctly attenuated through a 470-ohm resistor on the sync line to operate at 75 ohms, ensuring the best possible picture and helping reduce the jail bars effect present on some units.

Fully plug and play: no tuning or additional setup required. This cable is not compatible with the Mega Drive 1 or the Master System, as these consoles use a different output.

Compatibility

• MVS CMVS Neo Geo Pro Supergun with Original SNK Board (Mega Drive 2 RGBs, S-Video and Composite output)
• MVS CMVS Neo Geo Supergun with Original SNK Board (Mega Drive 2 RGBs output, Unibios 4.0 BIOS)
• SEGA Mega Drive 2, Genesis 2, Genesis 3, 32X, Nomad, CDX and Multimega
• TVs with SCART input
• SCART to HDMI converters with RGB support
• SCART to component video converters
• XRGB-mini Framemeister (via EuroSCART to mini adapter)
• OSSC (Open Source Scan Converter)
• RetroTink 2X SCART, RT5X and RT4K

Features

• Compatible with the MVS/CMVS Neo Geo Supergun (Mega Drive 2-type RGBs video output)
• Also compatible with SEGA Mega Drive 2, Genesis 2, Genesis 3, 32X, Nomad, CDX and Multimega
• 9-pin Mini DIN connector
• No tuning required, plug and play
• True RGB video signal with CSYNC
• Stereo audio
• Made with double-shielded cable
• High-quality AC coupling capacitors on the RGBS lines
• 470-ohm resistor on the sync line for correct 75-ohm attenuation
• Fully wired SCART connector, grounded via integrated PCB
• Can reduce the jail bars effect
• Not compatible with the Mega Drive 1 or Master System
