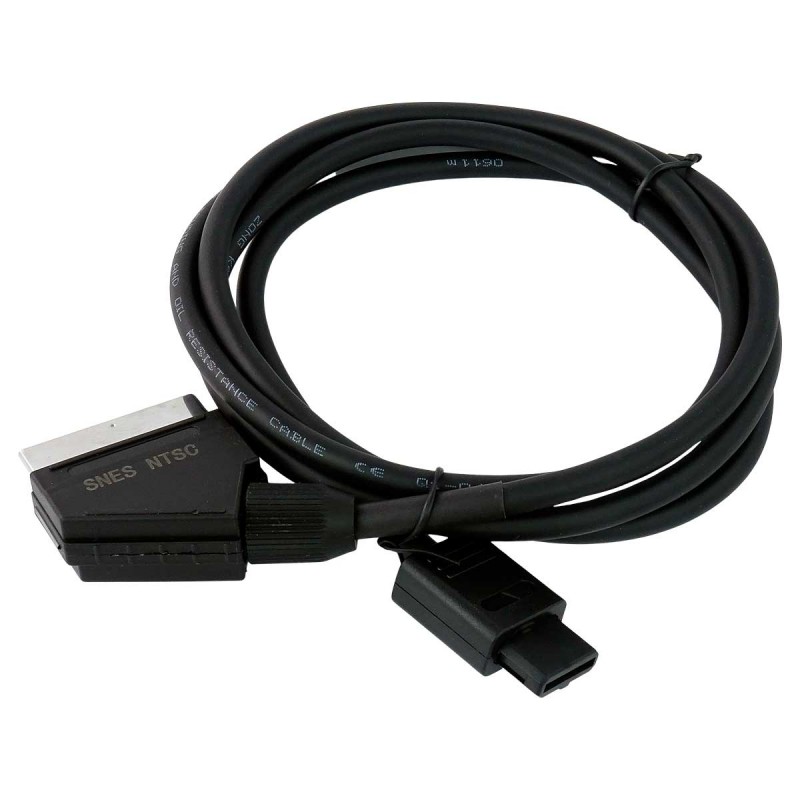

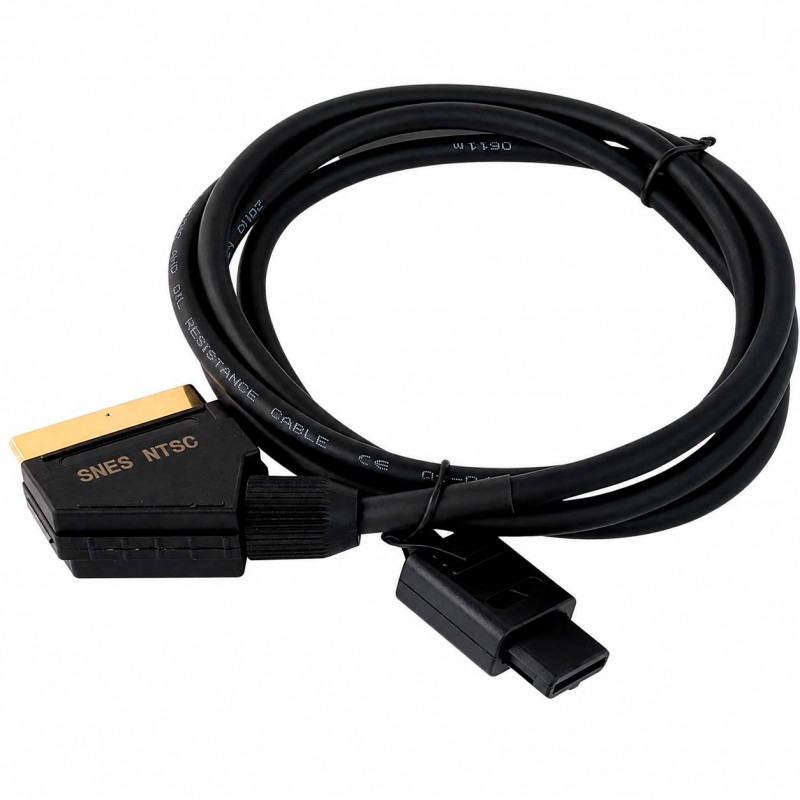

Super Nintendo / Super Famicom (NTSC) Express Pro RGB SCART Cable

The NTSC Super Nintendo and the Super Famicom feature an AV Multi Out output on the rear from which a true RGB video signal can be extracted. With this RGB SCART cable you will get the most out of your console, achieving a sharp, vivid and interference-free image, far superior to the original video cable.

The Express Pro is the ultimate SCART cable for NTSC Super Nintendo and Super Famicom, entirely designed and manufactured by Arcade Express. It is built with a double-shielded cable that eliminates crosstalk between channels and external interference, guaranteeing maximum purity of image and sound. It incorporates high-quality coupling capacitors on the RGB lines for a fully correct signal.

The cable is wired for CSYNC (composite sync) from pin 3 of the Multi AV connector, correctly attenuated using a 470 ohm resistor at the console end of the cable, guaranteeing the best possible image quality and maximum compatibility with upscalers and professional monitors.

Important warning: this cable is exclusively for NTSC consoles (North America and Asia). Do not use this cable on a PAL Super Nintendo or a PAL GameCube. PAL consoles output 12 volts on pin 3 of the AV Multi Out connector instead of CSYNC, which could damage your television or video equipment. A dedicated cable for PAL consoles is available in our store.

Compatibility

• SCART enabled televisions
• SCART to HDMI converters with RGB support
• SCART to component video converters
• XRGB-mini Framemeister (via EuroSCART to mini adapter)
• OSSC (Open Source Scan Converter)
• RetroTink 2X SCART, RT5X and RT4K

Features

• Compatible exclusively with NTSC Super Nintendo and Super Famicom (North America and Asia)
• 12-pin Nintendo AV Multi Out connector
• No tuning required, plug and play
• True RGB video signal with CSYNC
• Stereo audio
• Built with double-shielded cable
• High-quality coupling capacitors on the RGB lines
• 470 ohm resistor on the sync line for correct attenuation
• Fully wired and grounded SCART connector via integrated PCB
• Not compatible with PAL Super Nintendo, PAL Super Famicom or PAL GameCube
