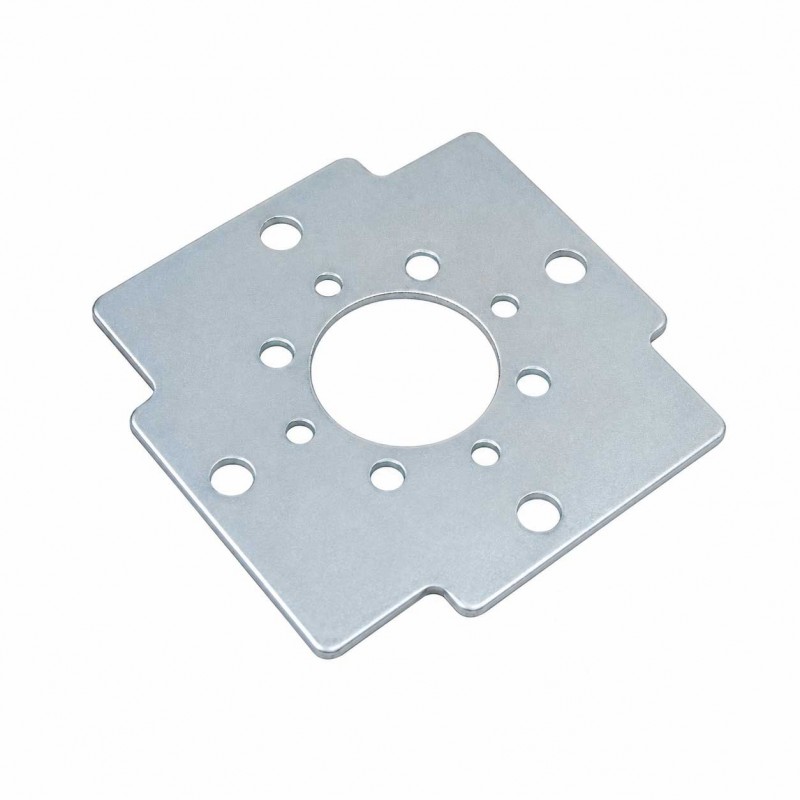

Microswitch Base Plate LS-32-01 (Model since 2017)

This Seimitsu microswitch base plate belongs to the 2017 update of the Seimitsu LS-32-01 joystick, one of the most widely used models in Versus City cabinets and custom fightsticks, alongside the Sanwa JLF.

The part is installed in the lower housing of the joystick and allows you to fix the LS-32-01 microswitch PCB in place.

Its purpose stems from a change in the industry: Panasonic discontinued the original microswitches used by Seimitsu across the entire LS-32 range, which required redesigning both the switch and its mounting base. For this reason, this redesigned base plate is essential if you are installing the new Seimitsu LS-32 PCB assembly into an LS-32 or LS-32-01 joystick made before 2017, since the original base is not compatible with the new PCB.

This is a maintenance and restoration part designed for those upgrading or repairing their joystick while keeping the classic feel and behaviour of the LS-32-01.

Features

• Original Seimitsu microswitch base plate
• Compatible with the LS-32-01 model (since 2017)
• Installs into the lower housing of the joystick
• Allows fixing the microswitch PCB in place
• Essential for installing the new LS-32 PCB in joysticks made before 2017
• Not compatible with the original base of pre-2017 models
