JVS to JAMMA / JVS to USB Converter Board

€74.37
2 Items

By buying this product you can collect up to 14 points. Your cart will total 14 points that can be converted into a voucher of €0.42.

VAT included Financing available only for orders over 50 euros

JVS to JAMMA and JVS to USB converter board, compatible with gamepads and keyboard, for arcade machines, CRT emudriver or PC.

Quantity
Last items in stock

Order it before 10:00 of tomorrow and receive it between Thu 13 August and Fri 14 August with NACEX

  • 1 year warranty 1 year warranty
  • Shipments in 24h / 48h Shipments in 24h / 48h
  • 15 day return policy 15 day return policy

Description - JVS to JAMMA / JVS to USB Converter Board

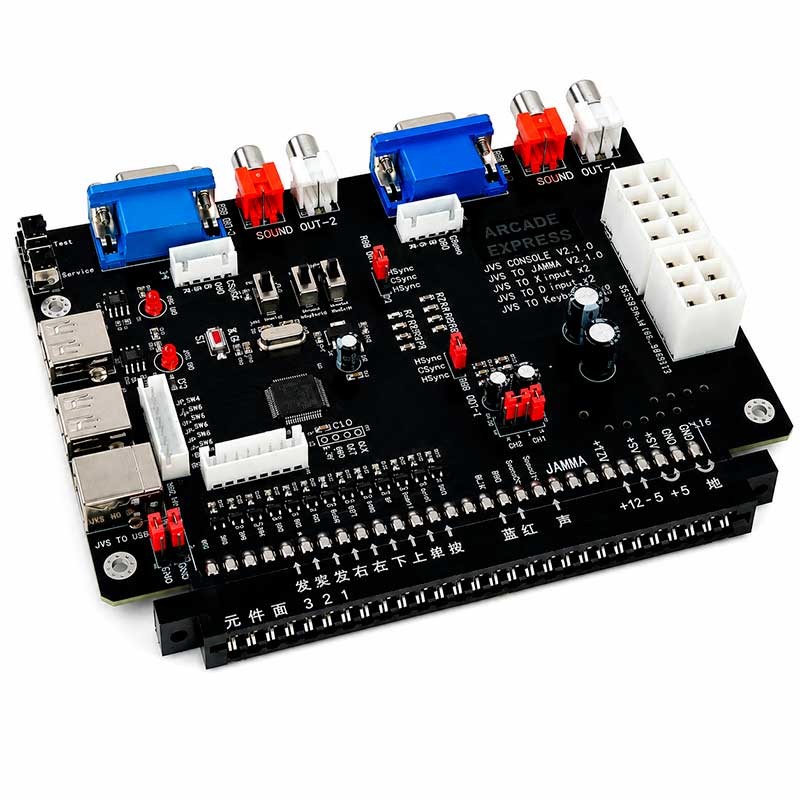

The JVS to JAMMA and JVS to USB converter board allows JVS interface systems to be adapted to standard JAMMA connectors or to a USB port, making it easy to use with gamepads, joysticks and a keyboard.

It features two JVS Host ports (USB) for connecting gamepads or controllers, plus an additional JVS to USB port designed for a keyboard. It also includes a JAMMA connector for direct installation in arcade machines, along with a 4-pin JVS power connector.

It has two VGA outputs and two RCA audio outputs (Sound Out-1 and Sound Out-2), as well as Service and Test buttons for system configuration.

It is compatible with JAMMA boards, CRT emudriver systems (at 15 kHz) and PCs via USB connection, running under Windows 7 / 10 or Linux.

Compatibility

  • Arcade machines with standard JAMMA connector
  • JVS IO Frame systems connected to a JAMMA board
  • JVS IO Frame systems connected to a CRT emudriver
  • JVS IO Frame systems connected to a PC (Windows 7 or Linux)

Features

  • JVS to JAMMA and JVS to USB conversion
  • 2 JVS Host ports for gamepads or controllers
  • 1 JVS to USB port for keyboard
  • Standard JAMMA connector
  • 4-pin JVS power connector
  • 2 VGA outputs
  • 2 RCA audio outputs (Sound Out-1 and Sound Out-2)
  • Service and Test buttons

Technical Specifications

Power
2 conectores tipo Molex
Audio
Salidas de audio: 2 (RCA, Sound Out-1 / Sound Out-2)
Connector A
Puertos USB tipo A (mandos): 2, compatibles Xinput y Dinput
Connector B
Puerto USB tipo B (teclado): 1
Connections
Jamma 56 pines
Weight
135gr
Connector Type
Salidas VGA: 2, con CSync y GND independientes
