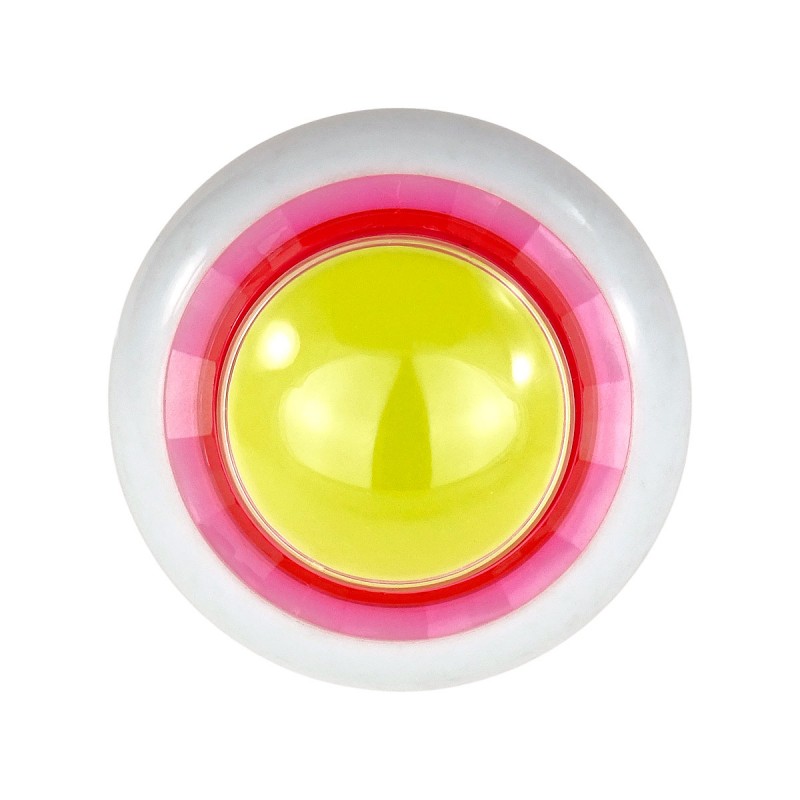

80mm Illuminated Push Button White Automatic 7 Color

The Baolong BL-8-3X6LED illuminated push button is a large-format button in white, designed for prize crane machines, vending machines and other arcade equipment that require an eye-catching, highly visible pushpoint. Its translucent cap, 80mm in diameter, allows the internal LED light to spread evenly across the whole button.

It features an automatic 7-color cycle, continuously shifting hue without the need for an external controller, providing a dynamic visual effect ideal for drawing attention in arcades and points of sale. It's commonly found in coin-operated crane machines and DIY arcade customization projects.

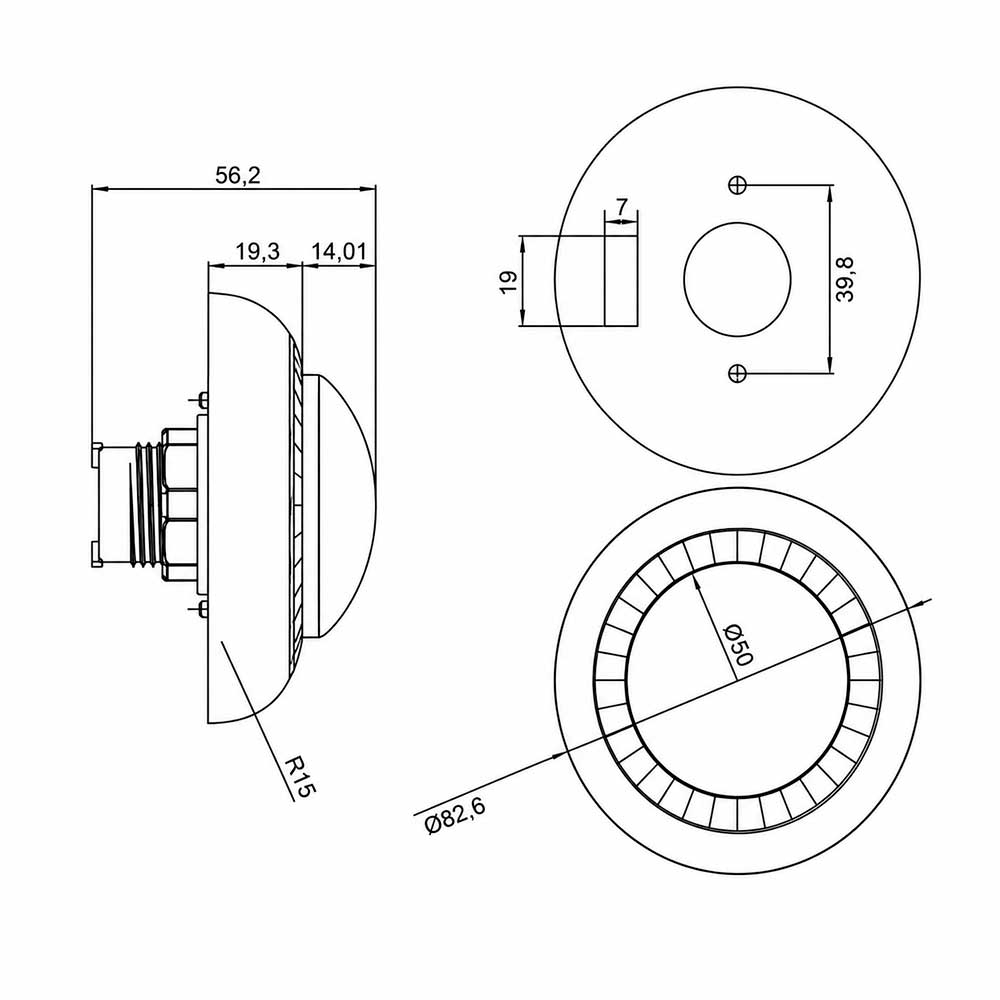

The button sits on a microswitch built into the board itself, reliably registering each press. Connection is made via a multi-pin connector on the board, rated for 12V power. It's fixed in place using two screws spaced 39.8mm apart.

Features

• Button diameter: 80mm
• Housing color: white
• LED lighting with automatic 7-color cycle
• Microswitch built into the board
• 12V power supply
• Mounting thread/nut diameter: 24mm
• Suitable for panels up to 25mm thick
• Total body length: 56.2mm
• Dome radius: R15
• Translucent cap for high visibility
