Brook Gaming Gen 5W Wireless Fighting Board (PS5 / PC / STEM DECK)

After receiving the product, please visit Brook’s official website to update the firmware.

UPDATE LINK

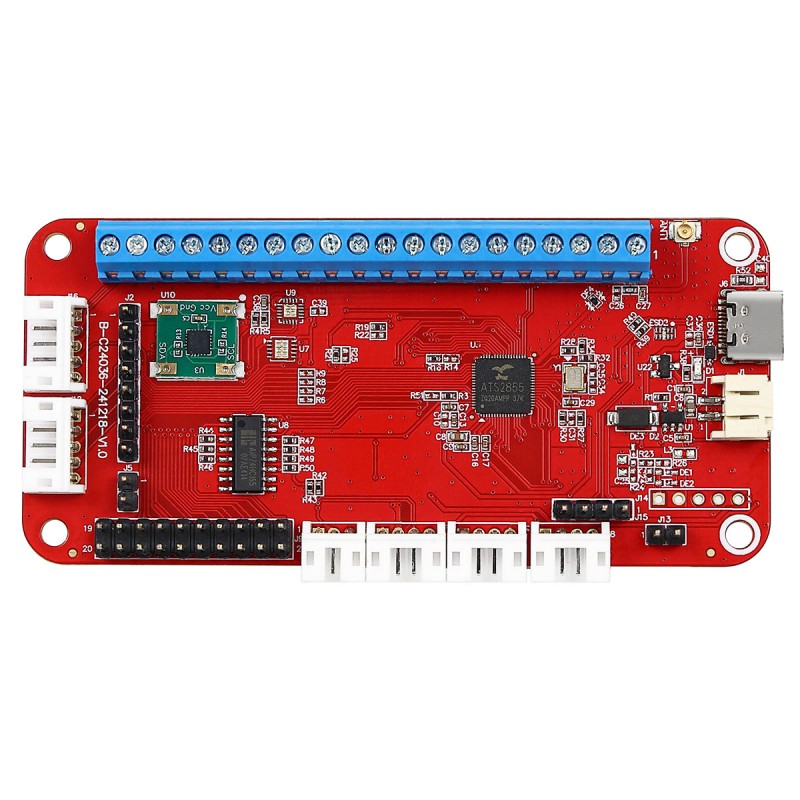

The Brook Gaming Gen 5W Wireless Fighting Board is the new generation of arcade boards designed to deliver precision, stability, and complete freedom. Compatible with PS5, PC, and Steam Deck, this board allows you to play both via USB-C cable and wirelessly via Bluetooth, ensuring a smooth and lag-free experience, even during long sessions thanks to its No Timeout Guarantee.

It features a 3.5mm audio output (PS5 only), dual analog stick support, and full touchpad emulation for total compatibility with PS5 controller functions. In addition, it includes a built-in SOCD cleaner with tournament-standard logic, ideal for professional setups and competitions.

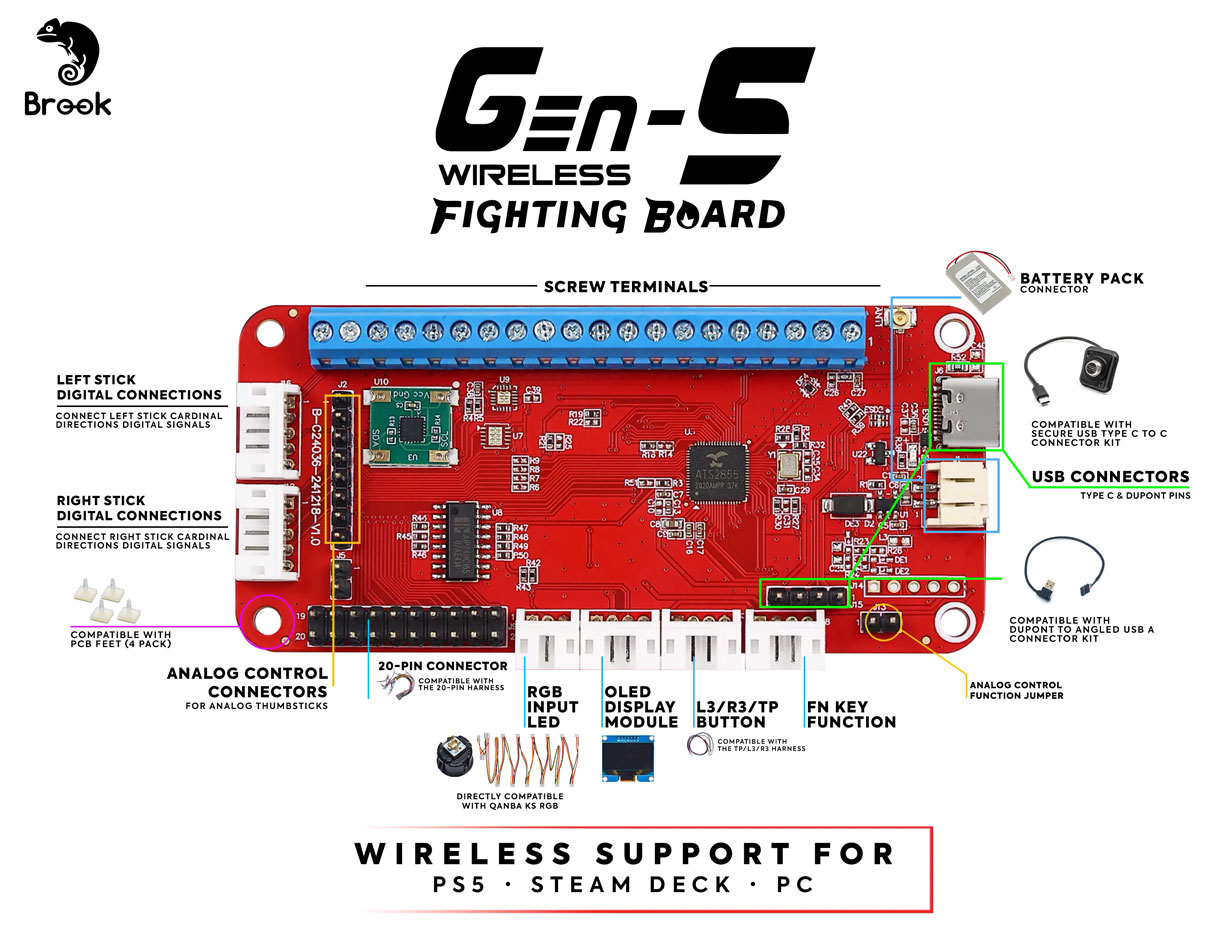

The Gen 5W offers four SOCD modes, joystick mapping (LS / DP / RS), Turbo function, and RGB lighting compatibility (WS2812B, Qanba Gravity RGB, LED strips, etc.) via daisy chain connection. Installation is fast and straightforward, designed for both DIY projects and professional modding, and it includes Tournament Mode support to lock accidental inputs during competition.

The board is compatible with optional OLED displays for status and configuration viewing, and its upgradeable firmware ensures ongoing compatibility with the latest systems.

In short, the Brook Gen 5W combines precision, versatility, and wireless freedom to help you get the most out of your arcade or fightstick project.

NOTE: Wireless mode requires a 3.7V 4000mAh rechargeable lithium battery (model 805080), not included with the board.

Compatibility

• PS5
• PC
• Steam Deck

Features

• Multi-platform compatibility: PS5 / PC / Steam Deck
• Wired (USB-C) and wireless (Bluetooth) connectivity
• 3.5mm audio support (PS5)
• Low latency and stable connection with No Timeout Guarantee
• Four SOCD modes (Neutral / Up Priority / Last Input / All Buttons)
• Built-in SOCD cleaner (Tournament Standard)
• Configurable joystick mapping (LS / DP / RS)
• Turbo function with free assignment
• Full touchpad emulation (PS5)
• RGB lighting compatibility (WS2812B, Qanba Gravity RGB, daisy chain)
• Dual analog stick support
• Lock function and Tournament Mode
• Compatible with optional OLED display
• Upgradeable firmware via USB
• Simple and direct installation (DIY or professional)
• Durable build and competitive-level performance
• User Manual
