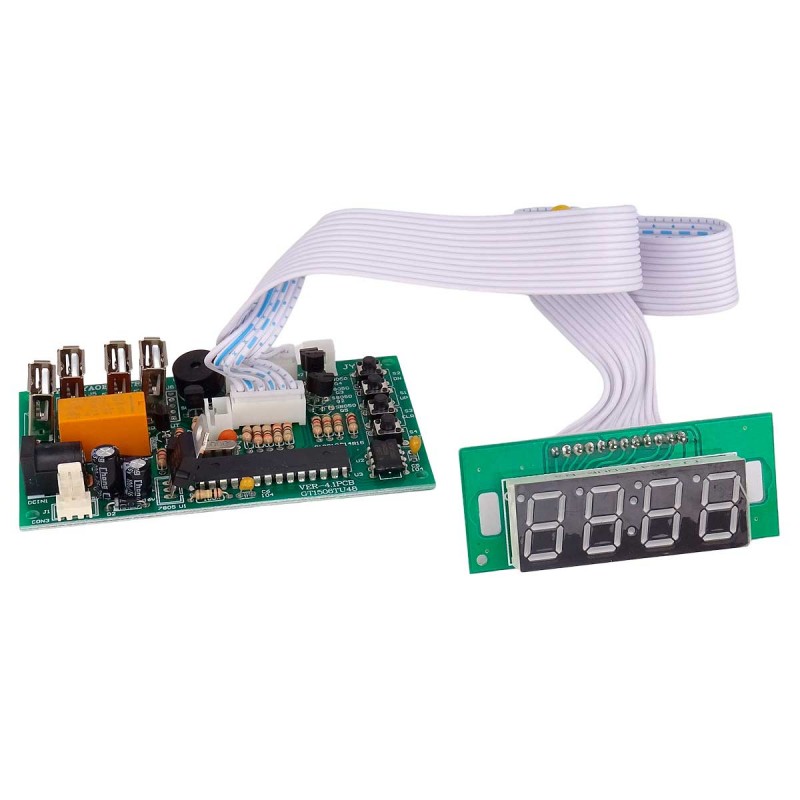

Description - Arcade Timer Board with LED display for PCB coin mech JY-15B
This is a gadget that is applicable to an endless number of devices not necessarily related to the Arcade world. This timer PCB is a controller with a LED display mainly used to control the time in which a circuit should be running. Normally connected to a coin acceptor, we can find this type of PCB in public laundries, vending machines, TV's, dispensers of any kind, car washes and a very long etcetera.
This controller board connects to an Electronic Coin Mech, acting as a timer to ensure that the user pays for the time of use of the device.
The integrated LED display on the PCB allows users to see the remaining usage time or any other relevant information of the device. Very easy to install and configure, this is a simple and effective solution to ensure that our payment devices are as efficient as possible in their use, while at the same time fair to the customer, as it provides users with the necessary information to effectively manage their time, and therefore, their money.
The board integrates a 1250W/DC 500W electrical relay, which is very easy to install and configure by following the included instructions. You can configure the different times by seconds, minutes or hours. You can also configure accumulation of time in the case of receiving any "input" before the end of the countdown, being ideal for anyone who needs a simple and easy to install PCB to control the use in time of their devices for public use.
Here's a small scheme of how to connect this controller to your Electronic Coin Mech, and remember that this board requires a voltage of 12v for correct operation.
Controls TVs, massage chairs, car washers, dryers, etc.
1250W/DC 500W electrical relay
Adjustable speed through three simple push button switches
